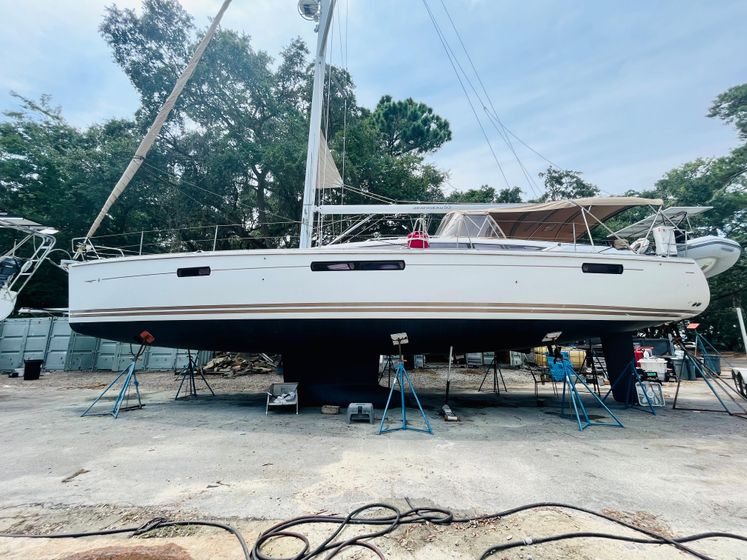

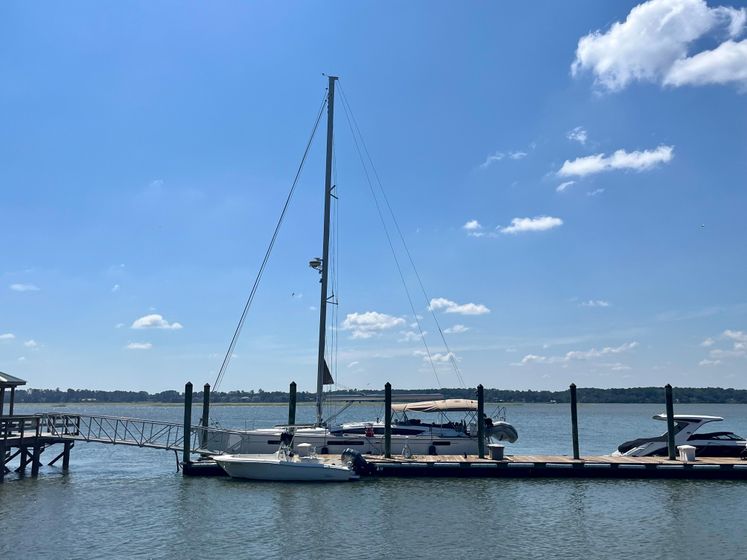

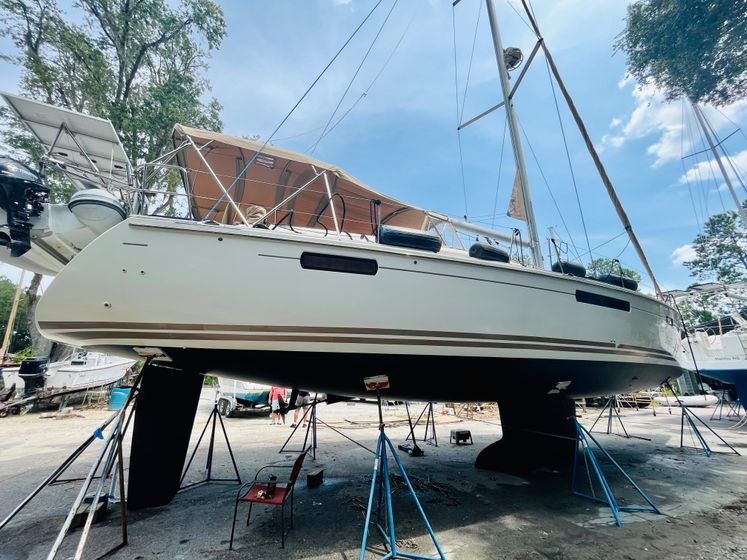

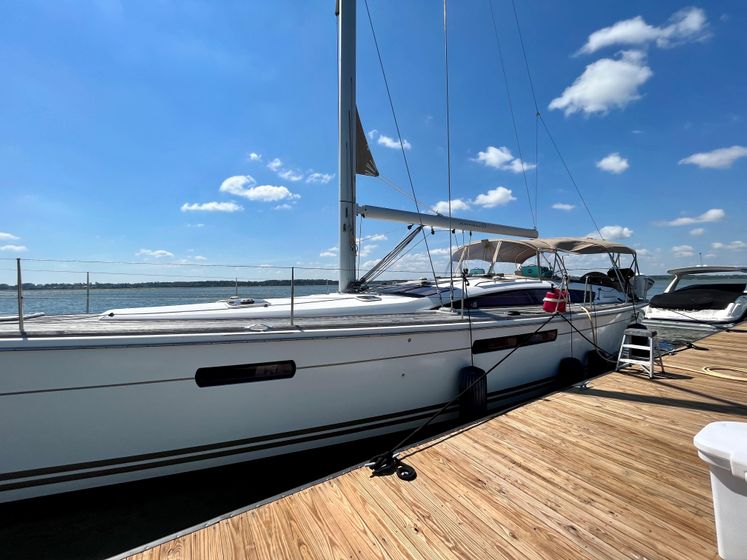

Jeanneau 53
This Jeanneau 53 yacht features a convertible two-to-three-cabin, three-head layout with a shoal keel and in-mast furling mainsail. This is the aft owner's stateroom layout with symmetrical twin guest cabins forward that have a removable bulkhead to combine the guest cabins into a super large cabin and berth. That is the current configuration onboard, and the removable bulkhead is currently stored below the berths.
The cockpit is well laid out and extremely spacious. The accommodations are also spacious and have a luxurious feel. This is a comfortable yacht for long-distance cruising and entertaining.
This is a two-owner boat, and the current owners have owned the boat for the last 4 years. She is well-maintained and everything is in working order. She just had new bottom paint this past month (Aug/2023). Her teak decks are also well-maintained, and recently serviced (Aug/2023). The boat shows well inside and out. Originally from the Chesapeake Bay, this vessel has now been in Hilton Head for the last couple of years and has made several trips down to the Bahamas and the Caribbean, that last of which was just this past winter. This is a well-maintained, optioned, and upgraded vessel that is ready to go Caribbean cruising again this winter.
(Preliminary Listing/More Photos and Details to Come)
MAINTENANCE & UPGRADES:
Keel: Bulb Keel
length Overall: 52.67 ft Length Waterline: 45.83 ft Length of Deck: 51.58 ft Max Draft: 5.83 ft Displacement Measure: 32926.00 lb Dry Load Ballast Weight Measure: 11852.00 lb Bridge Clearance Measure:71.17 ft Cabin Head room measure: 6.33 ft Beam Measure: 15.67 ft

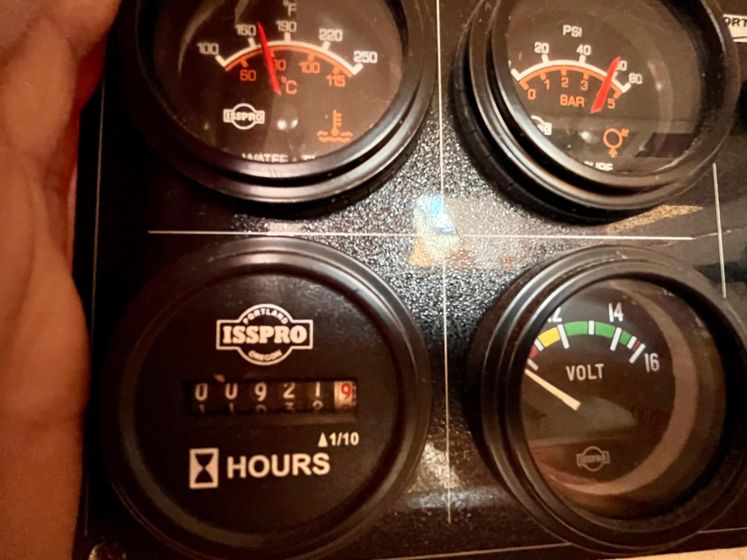

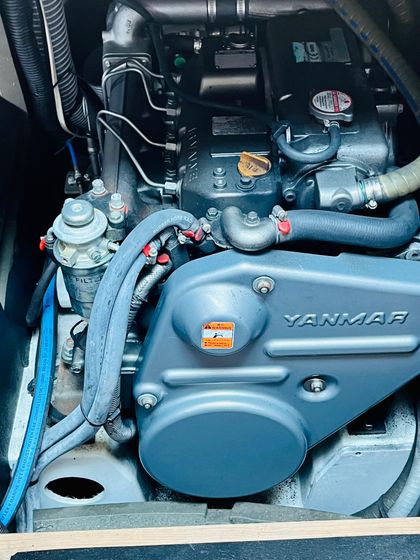

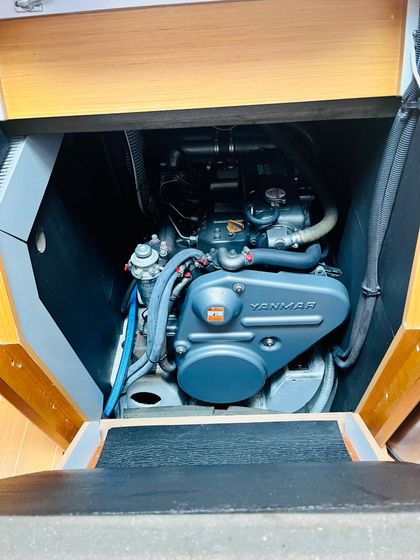

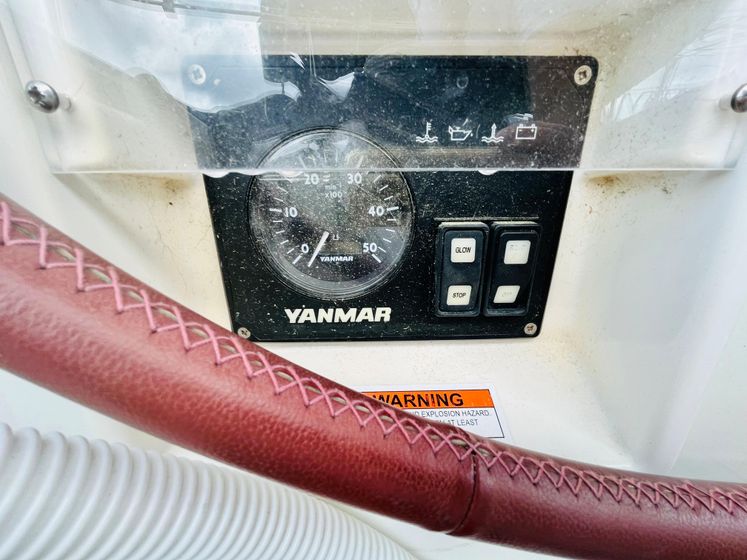

Engine Brand:Yanmar Year Built: 2012 Engine Model:4JH4-HTE1 Engine Type: Inboard Engine/Fuel Type: diesel Engine Hours: 1336 Engine Power:110|horsepower
Fresh Water Tanks:3(83 Gallons) Fuel Tanks: 1(63 Gallons)
Number of double berths: Number of cabins: 3 Number of heads: 3

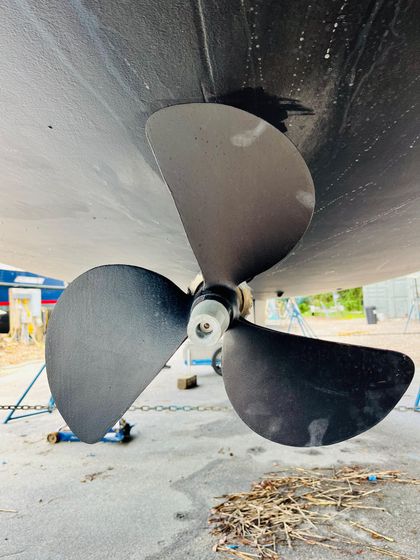

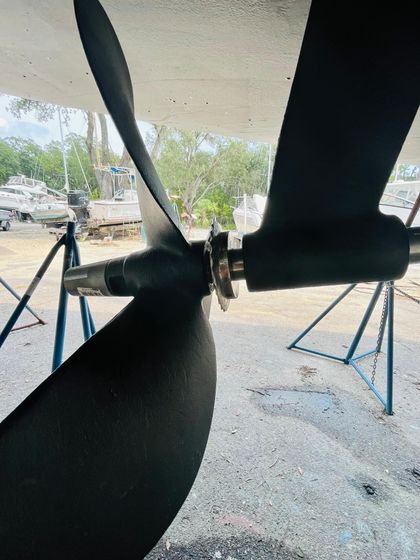

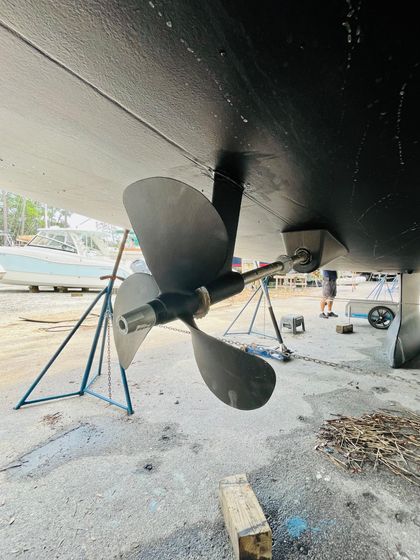

RUNNING GEAR

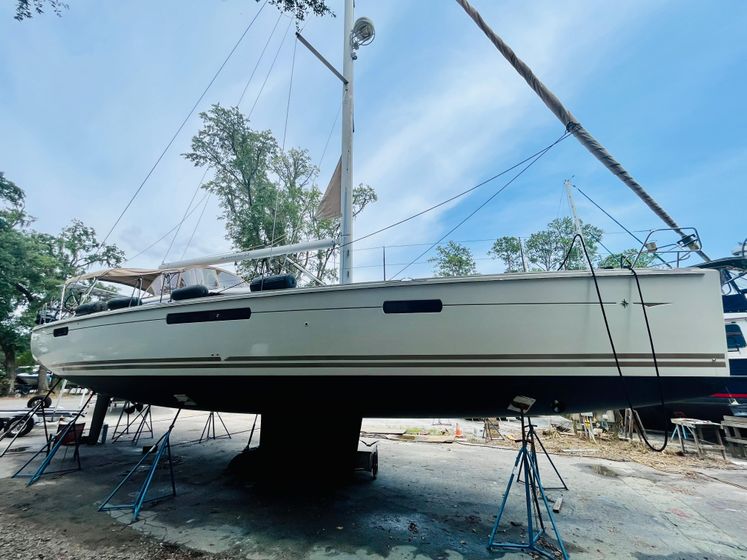

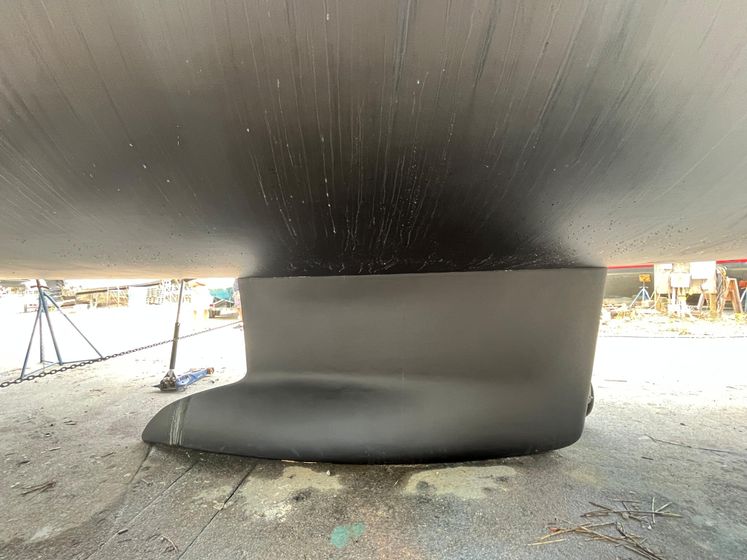

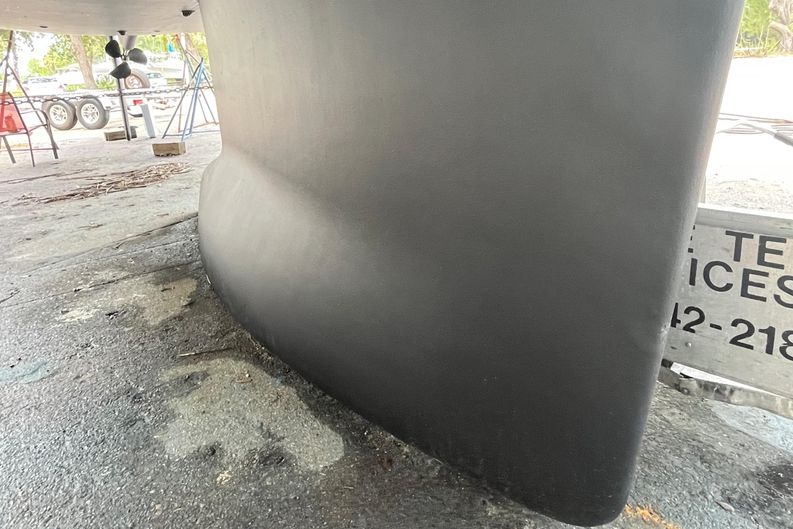

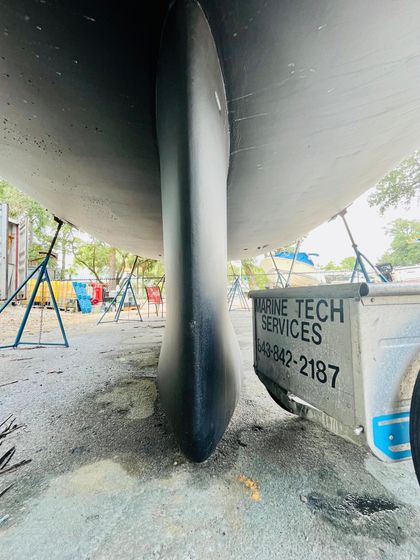

SHALLOW KEEL epoxy encapsulated cast-iron –
1.80m / 5’10” – 5376 kg / 11852 lbs
SPADE RUDDER with a foam core and GRP skin over
a composite stock
STEERING SYSTEM uses stainless steel cables driven
by sprockets
INTERIOR
All interior panels are veneered Alpi Fine Teak withCOMPANIONWAY
DROP-DOWN COMPANIONWAY HATCH
• Vertical hatch slides down when opened, no hatch
boards to store
• Can be set in closed, open and half-open positions
STAINLESS STEEL HANDRAILS to each side of
entryway
STAINLESS STEEL HANDRAILS with leather wrap
to each side of steps
WOODEN STEPS with non-skid strips
ACCESS behind steps to engine compartment
headroom = 1,97 m / 6’5’’

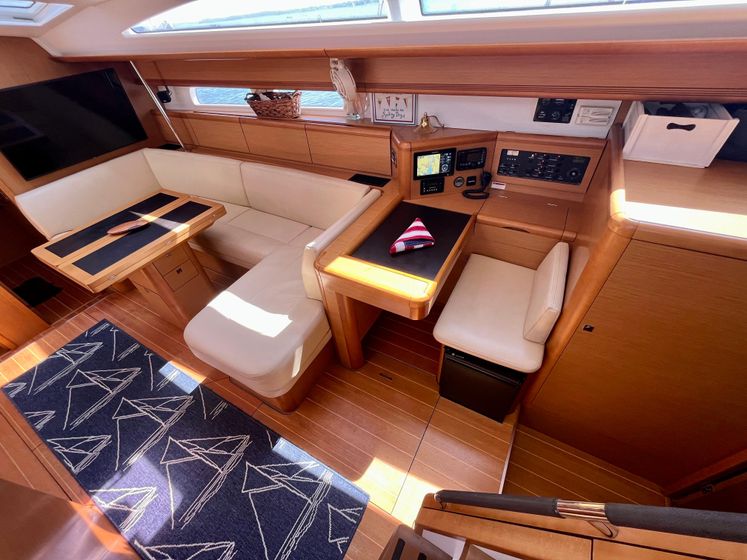

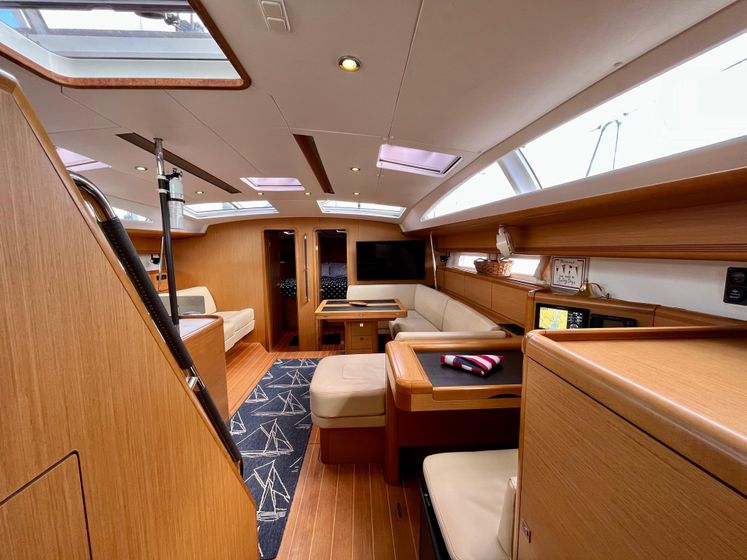

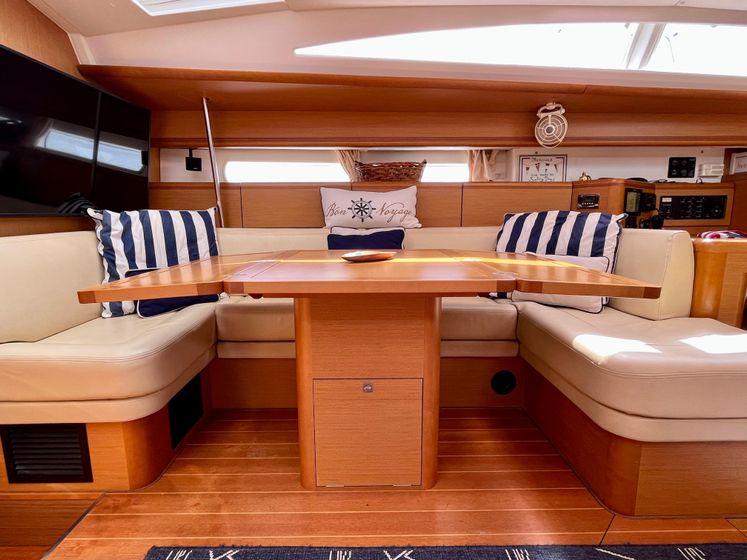

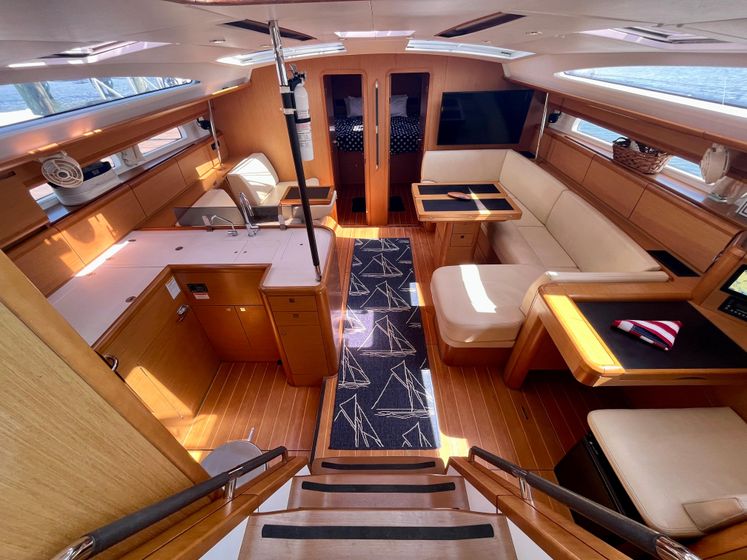

SALOON
COMFORTABLE SEATING ARRANGEMENT to
starboard for 6 with view of sea though hull ports
HINGED STORAGE COMPARTMENTS under
settee seating
LARGE TABLE with two removable, aluminium legs
and central bottle storage
PNEUMATICALLY-ASSISTED HINGED
CENTRAL FLOORBOARD provide access to
storage bins
COURTESY LIGHTING under steps to forward
cabin and galley, as well as other steps throughout the
boat
LED INDIRECT AND OVERHEAD LIGHTING
2 LARGE, FIXED HULL PORTS with curtains
3 OPENING LOW-PROFILE HATCHES in saloon
with pleated shade and insect screen integrated into ceiling
panels
headroom = 1,92 m / 6’3’’

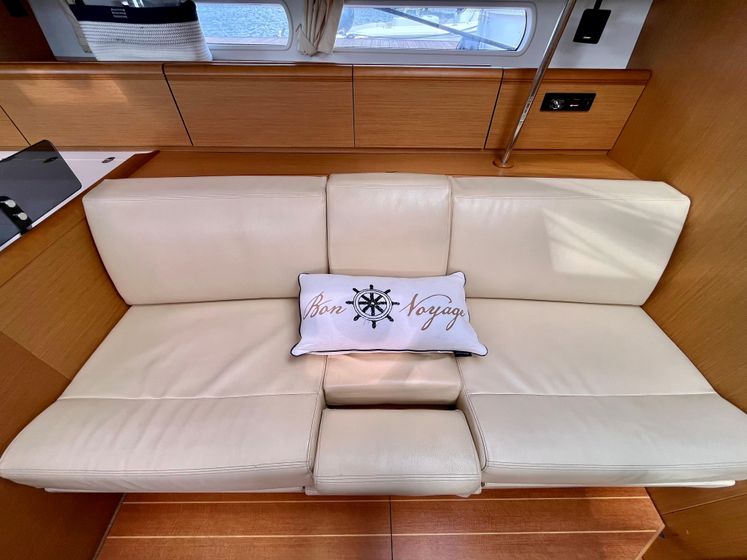

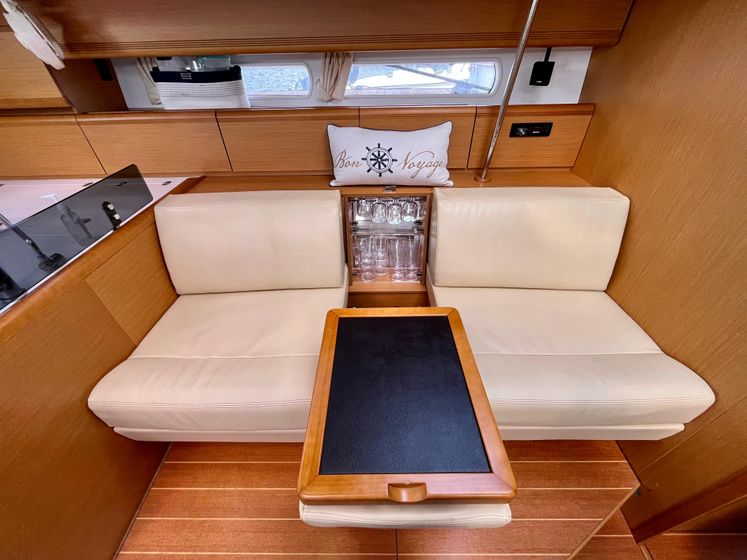

LOUNGE
COMFORTABLE RELAXED SOFA SEAT to port
with view of sea through hull ports

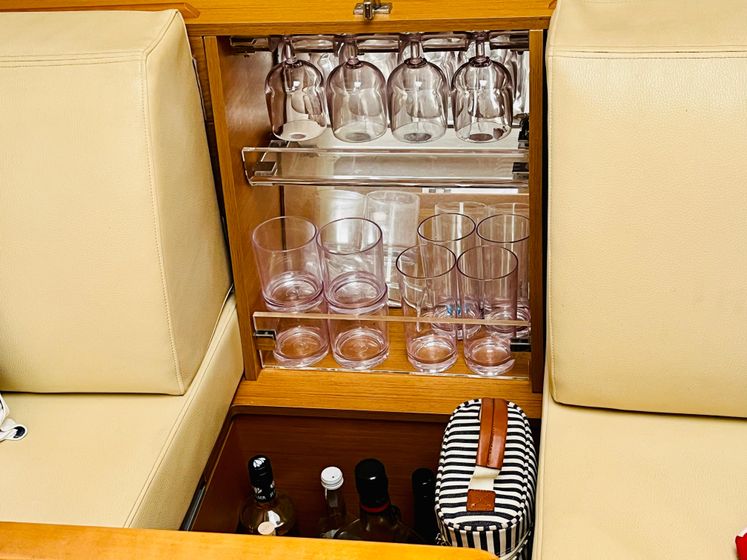

FOLDOUT BAR CABINET with leatherette-lined
table integrated into sofa with bottle and glass storage
LED INDIRECT AND OVERHEAD LIGHTING
HINGED STORAGE COMPARTMENTS under
settee seating
2 LARGE, FIXED HULL PORTS with curtains

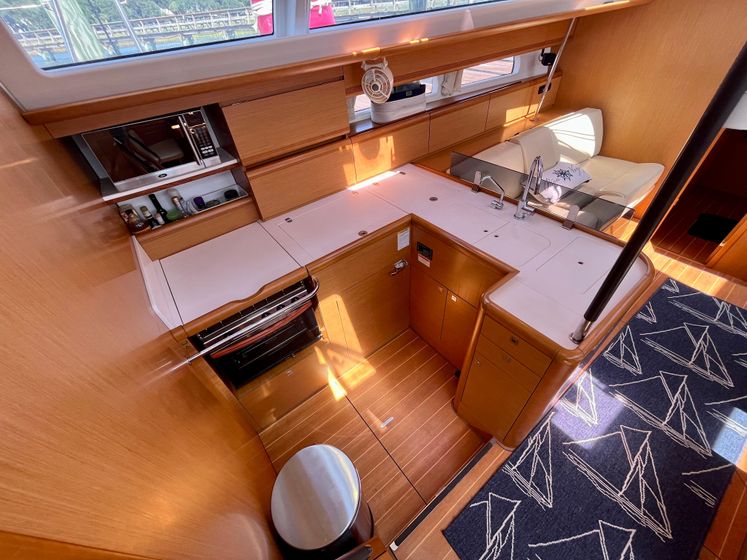

GALLEY
LARGE, L-SHAPED GALLEY to port of entryway
with solid surface countertop
DOUBLE STAINLESS STEEL SINKS with covers
CHROME MIXER TAP
FOOT PUMP with separate spout, pumps fresh or sea water
GLASS DIVIDER between galley and saloon
DISH DRYING COMPARTMENT with cover and
drain
SOFT-CLOSE, FULLY-EXTENDING DRAWERS
with sliders and dampers that close the drawer slowly,
silently and softly
SLIDING WASTE BINS with multiple compartments
for selective sorting and recycling
UPPER STORAGE CABINETS with storage and
space for optional microwave

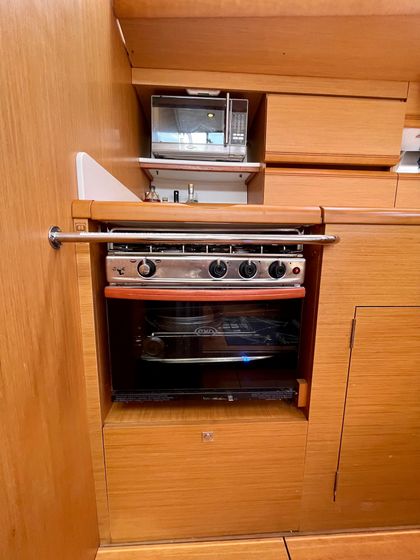

APPLIANCES:
• Gas cooker with 3 burners and oven, swivels,
lockable, sliding cover allows more countertop
when the cooker is not in use

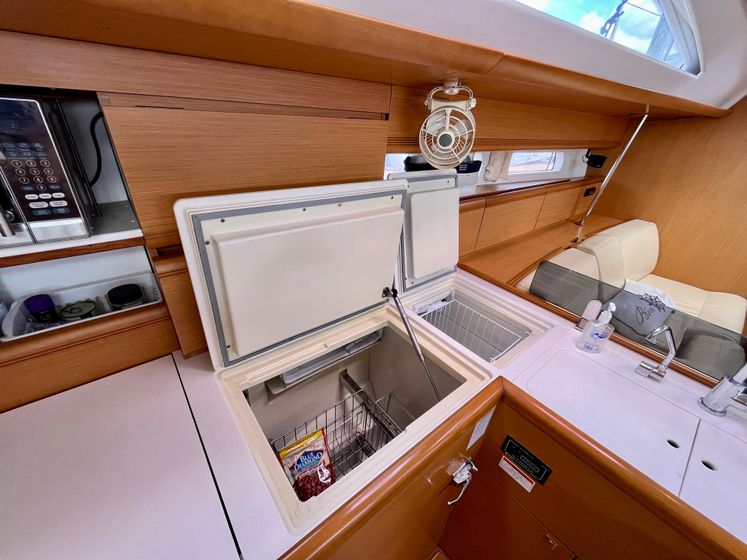

• 200 l / 53 US Gal refrigeration compartment with
top access and side access via a stainless steel door,
24V compressor, air cooled

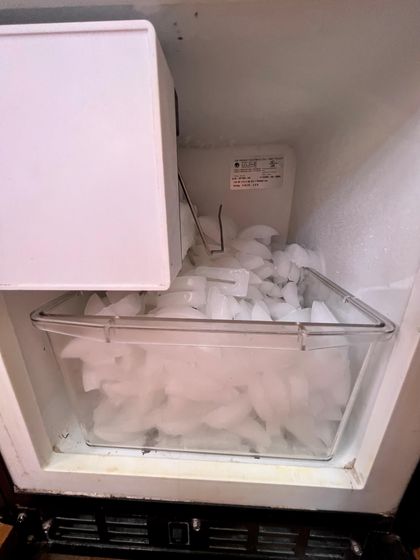

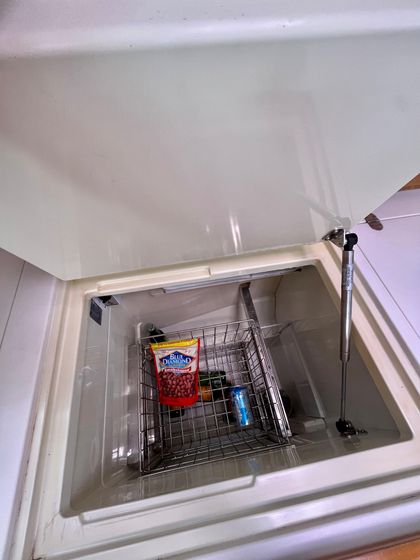

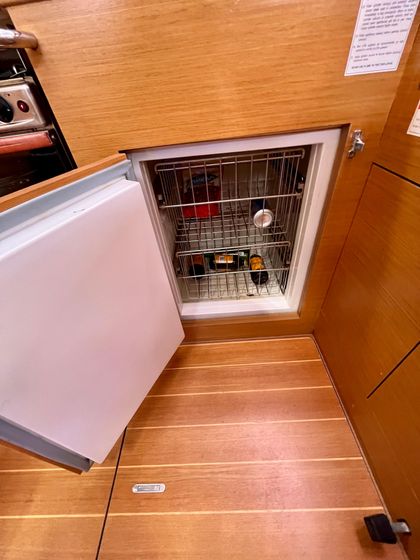

• 100 l / 27 US Gal icebox compartment with top
access that can be converted to an optional freezer
STAINLESS STEEL HANDRAIL in front of stove
for protection
COURTESY LIGHTING under steps
LEATHER-WRAPPED HANDRAIL
headroom = 2,02 m / 6’7’’

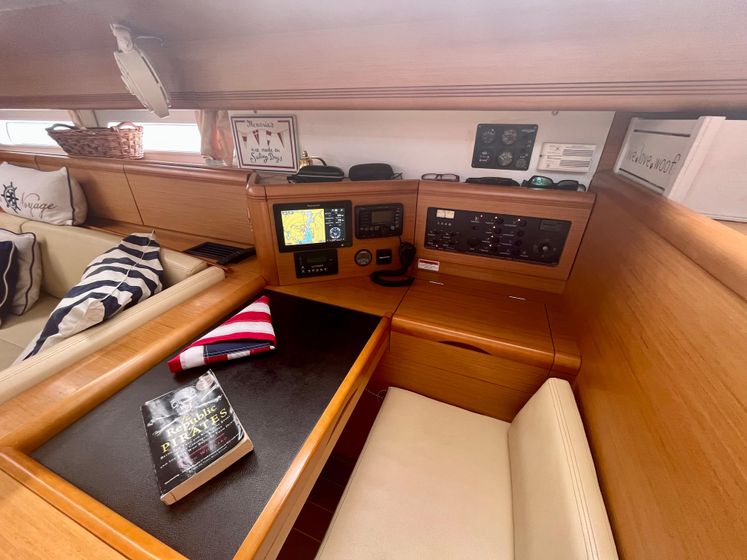

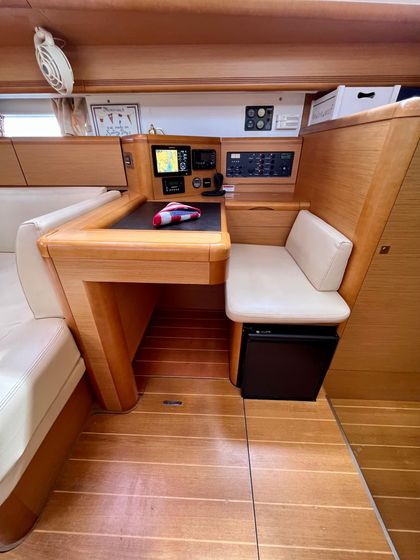

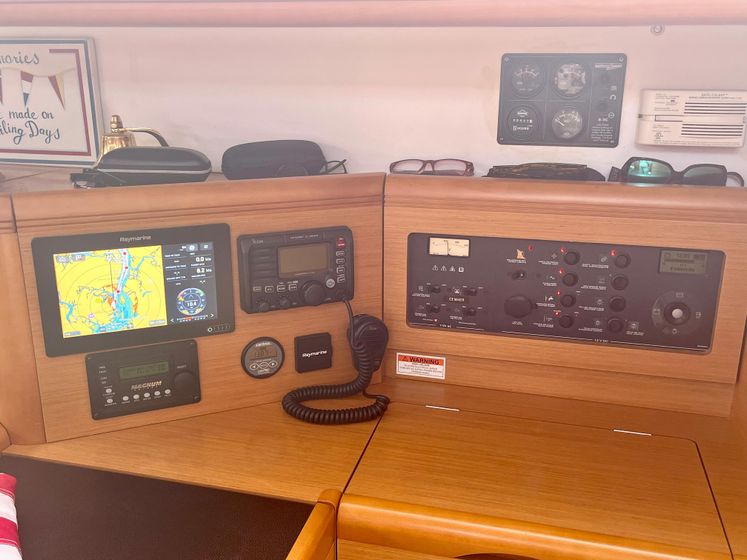

NAVIGATION STATION
(3 and 4 cabin versions)

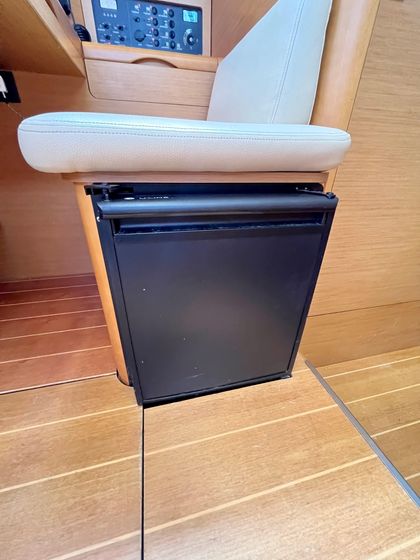

LARGE CUSHIONED NAVIGATION SEAT with
storage compartment underneath
CHART TABLE WITH LEATHERETTE
WORKTOP and details, sliding worktop opens space
designed for laptop computer
CHART READING LIGHT with red night-time vision
mode

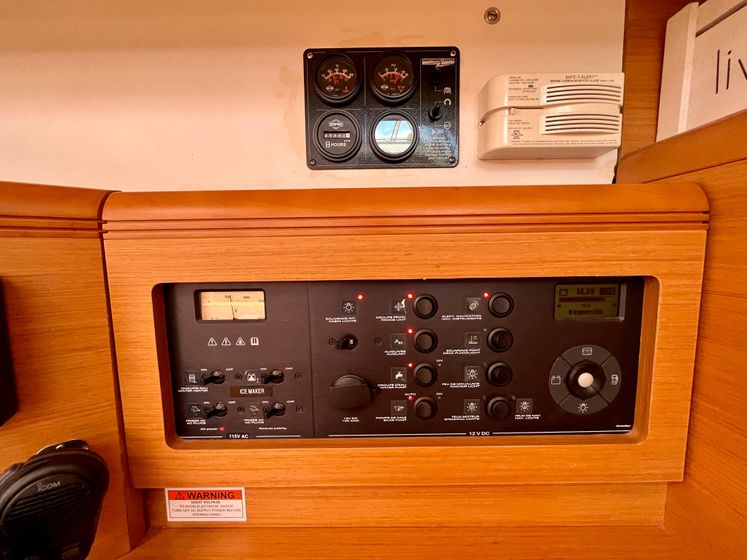

BACKLIT MAIN 12V PANEL with displays for
monitoring battery and tank levels
110V PANELS located in specially designed
cabinet with room for other optional equipment

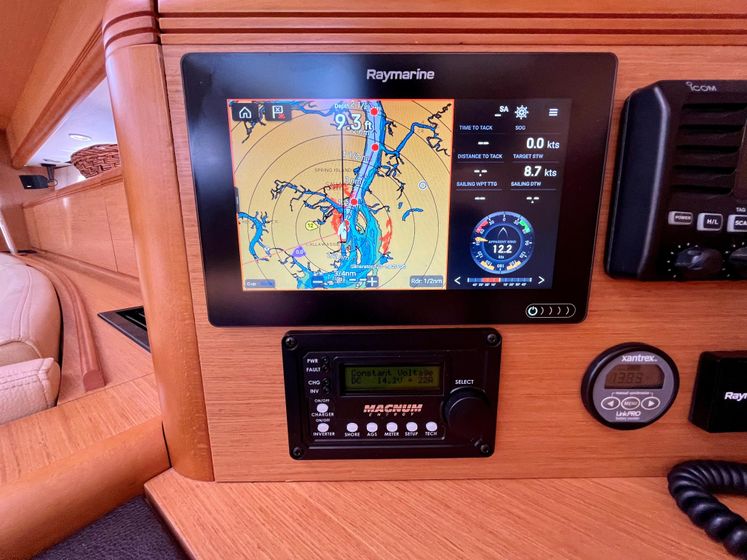

SPACE PROVIDED FOR FLUSH-MOUNTING
chartplotter, VHF and other instrumentation
LARGE STORAGE SPACE under electrical panel
with pneumatically-assisted opening for books and other
navigation equipment
headroom = 1,91 m / 6’3’’
NAVIGATION STATION: (5 cabin version)
STORAGE CABINET with opening top and long
drawers in the façade
BACKLIT MAIN 12V PANEL with displays for
monitoring battery and tank levels
220V AND 110V PANELS located in specially designed
cabinet with room for other optional equipment
SPACE PROVIDED FOR FLUSH-MOUNTING
chartplotter, VHF and other instrumentation
CABINS

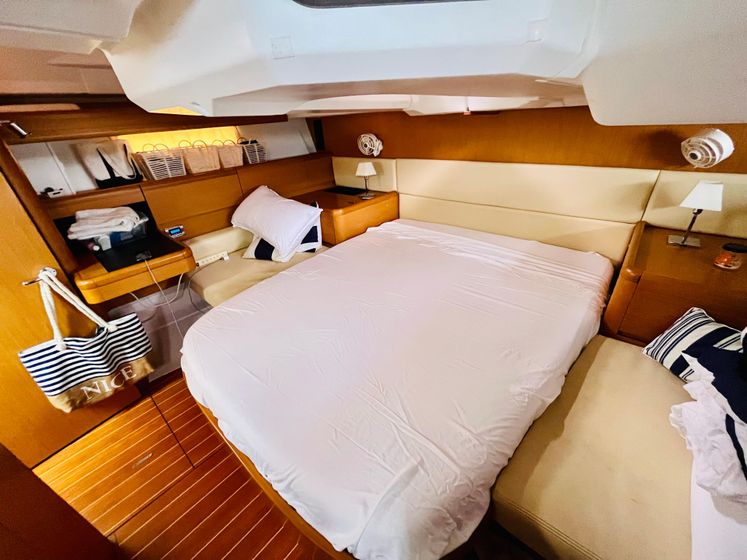

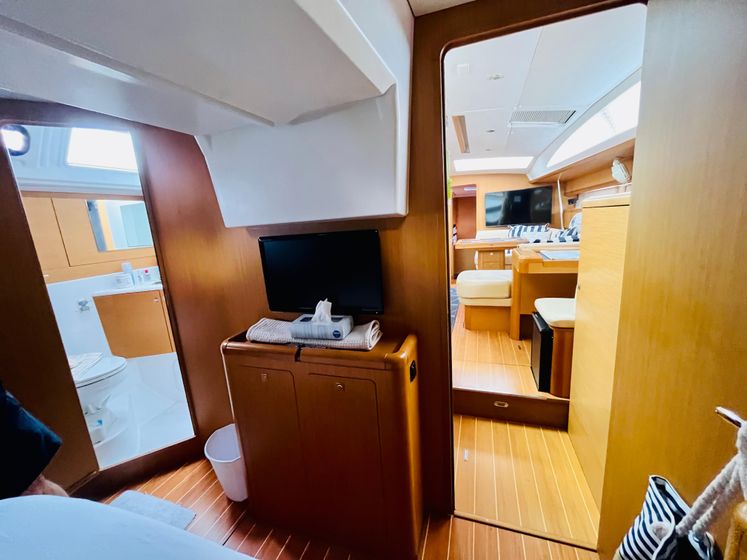

OWNER’S STATEROOM AFT
ACCESS from navigation station passageway
LARGE HANGING LOCKER behind navigation
station just outside of the cabin for additional storage
EXTRA WIDE CABIN DOOR
for easy access (56cm / 1’ 10”)
DOUBLE BERTH with high-density foam mattress
(201 cm x 170 cm / 6’10” x 5’6”)
LARGE HANGING LOCKER with fabric-lined door
and shelves
LOCKER OVER ENGINE COMPARTMENT
(location for 66cm / 26” optional TV)
SEATING on both sides of the berth
AN OFFICE/VANITY AREA with leatherette
desktop and storage area with light
STORAGE CABINETS along hull
NIGHT STANDS to each side of the berth with
storage compartment and a chrome table lamp
LED INDIRECT LIGHTING under side decks to
each side
ACCESS TO ENGINE compartment
FULL-LENGTH MIRROR
ACCESS TO FUEL TANK and technical conduits
under central berth
headroom = 1,93 m / 6’3’’
LARGE EN-SUITE COMPARTMENT
• Cabinet with moulded washbasin and solid surface
countertop
• Access to through-hulls and plumbing connections
under sink
• Upper storage locker
• Opening coachroof port to provide light and
ventilation with curtain
• LED overhead lighting and task lighting
• Standing shower separated by a plexiglass door
• Shower drain with foot switch
• Marine toilet with manual pump
• Mirrors
• Clothes hook
• Hanging bar for foul weather gear
2 FIXED HULL PORTS with curtains
5 OPENING PORTS for ventilation

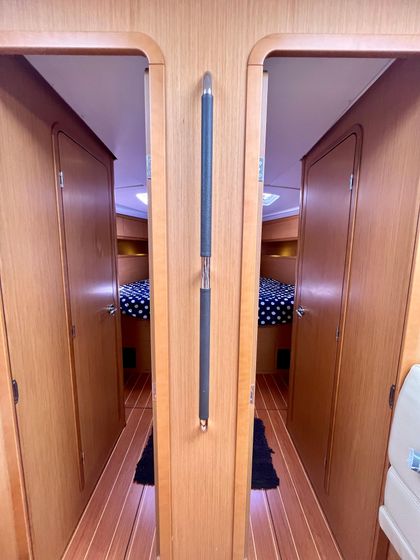

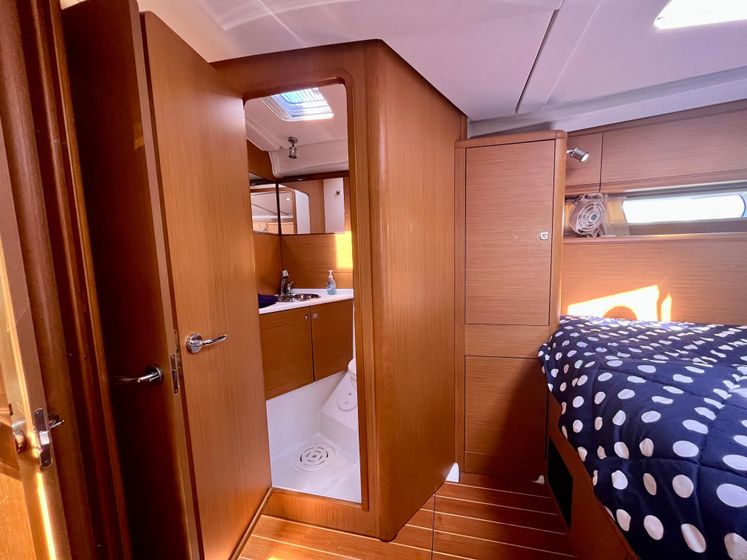

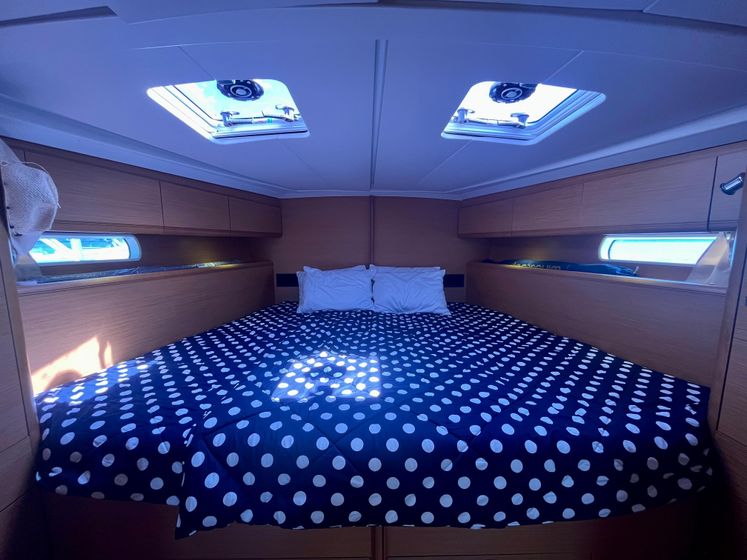

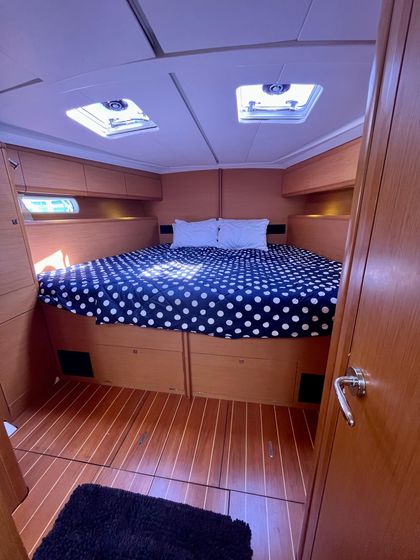

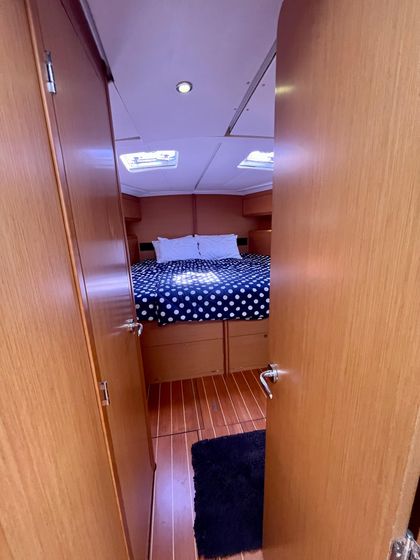

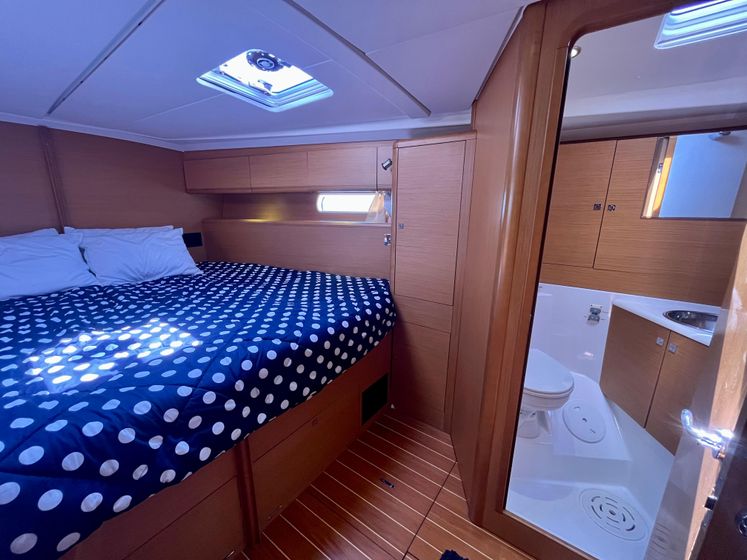

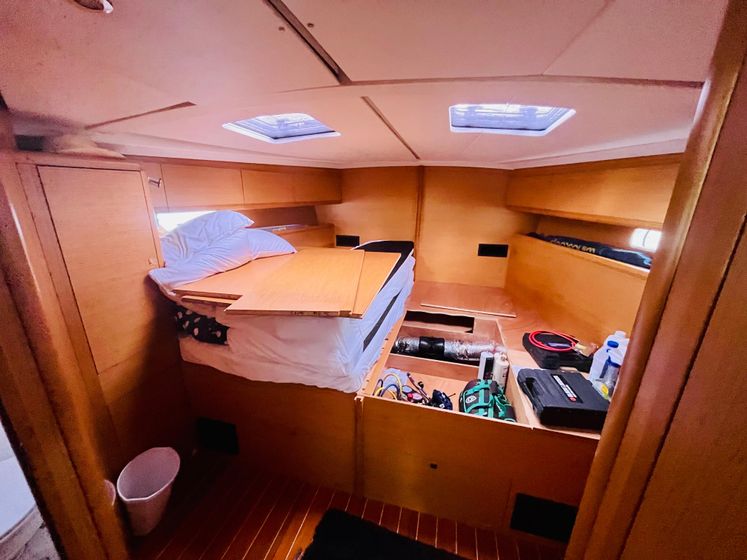

TWIN FORWARD GUEST CABINS
(Symmetrical to port and starboard with removable
bulkhead that is currently removed and stored under the berths)
TWO DOUBLE BERTHS SIDE BY SIDE (each measures 202 cm x 145 cm / 6’7” x 4’9” or combined they measure 404 cm x 145 cm / 6''7'''' x 9''6'''')
STORAGE FOR REMOVABLE BULKHEAD
between cabins under berth
HANGING LOCKER
STORAGE CABINETS with shelves
STORAGE LOCKERS under sidedeck
READING LIGHTS
LED INDIRECT LIGHTING under side decks
FIXED HULL PORT with curtain
1 LARGE AND 1 SMALL OPENING DECK
HATCHES for light and ventilation with pleated shades
and insect screens
headroom = 1,94 m / 6’4’’

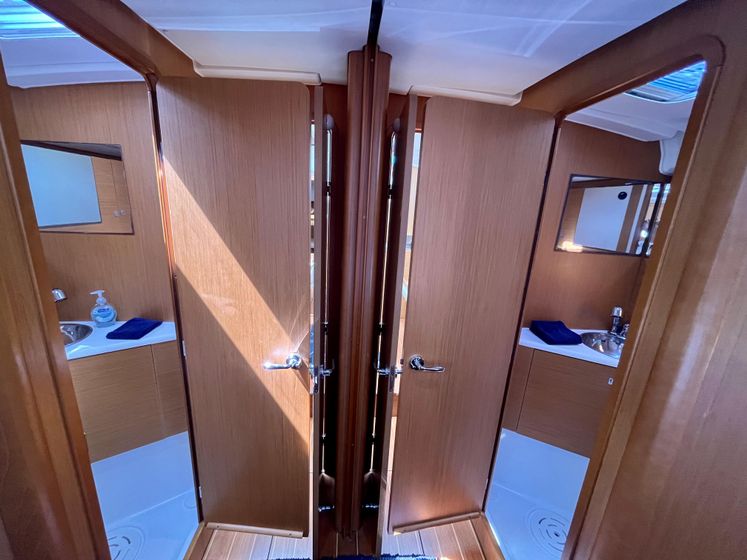

WASHROOMS
(Symmetrical to port and starboard)

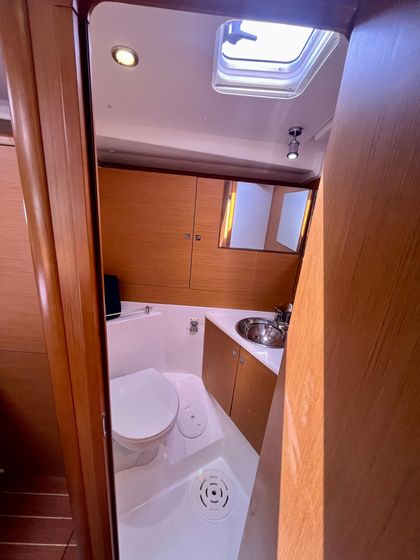

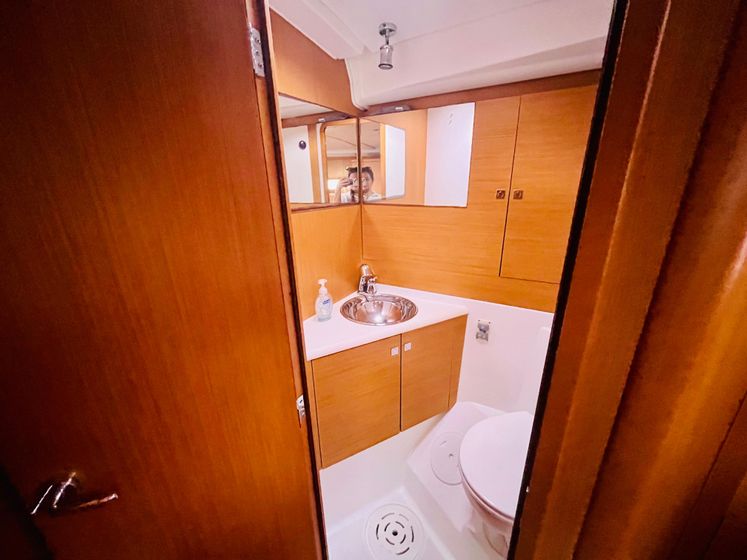

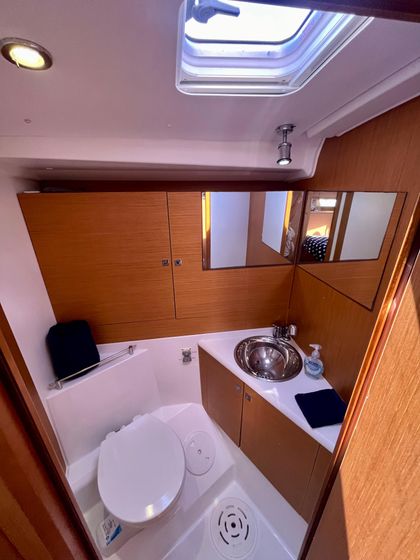

EN-SUITE COMPARTMENTS
• Cabinet with moulded washbasin and solid surface
countertop
• Access to through-hulls and plumbing connections
under sink
• Upper storage locker
• Opening hatch to provide light and ventilation
pleated shade and insect screen
• LED overhead lighting and task lighting
• Shower
• Shower drain with foot switch
• Marine toilet with manual pump
• Mirrors
• Clothes hook
• Towel bar
• Non-slip flooring

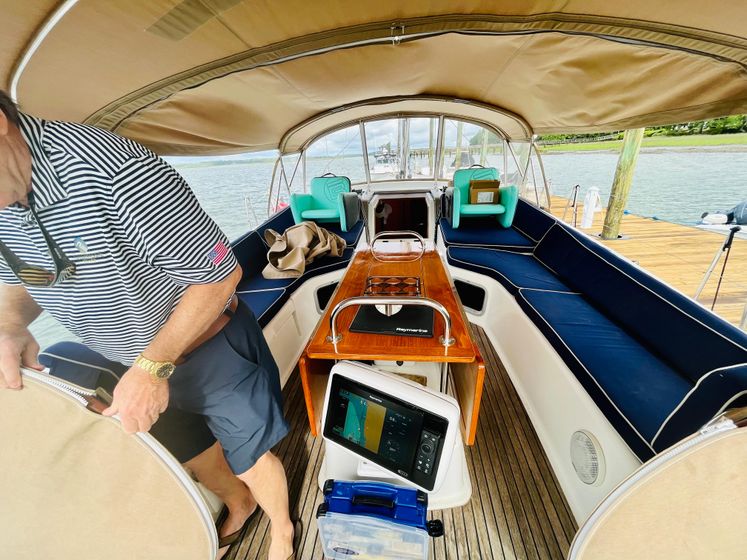

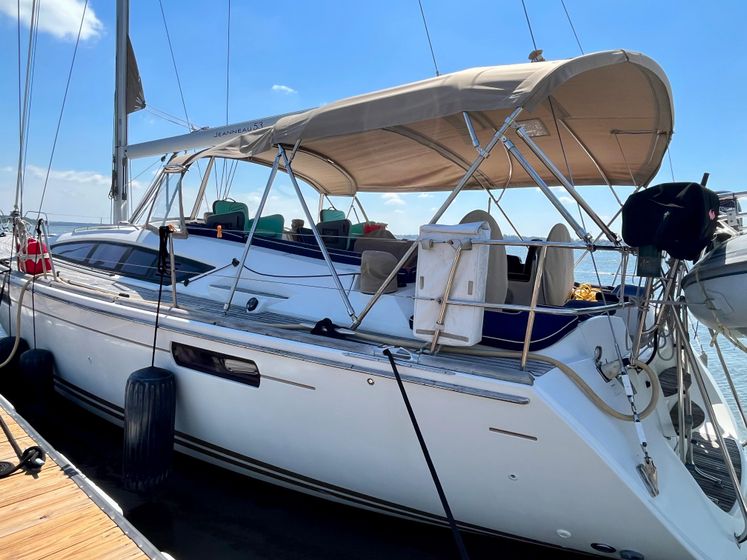

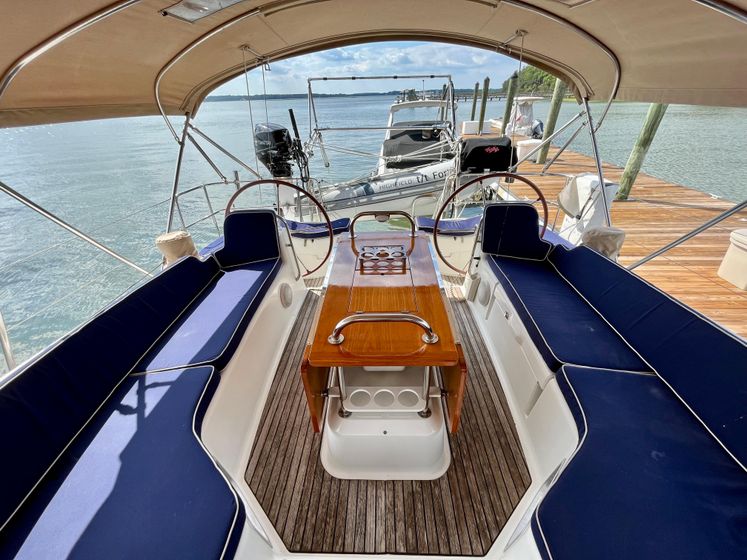

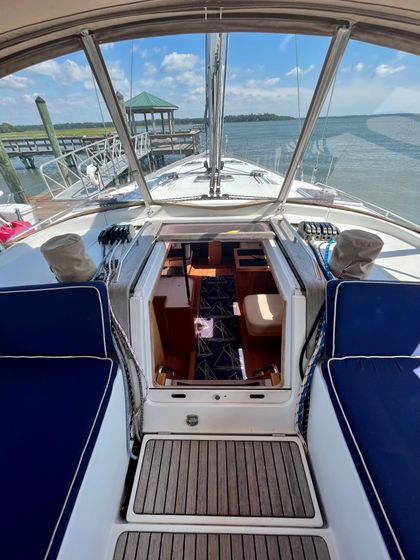

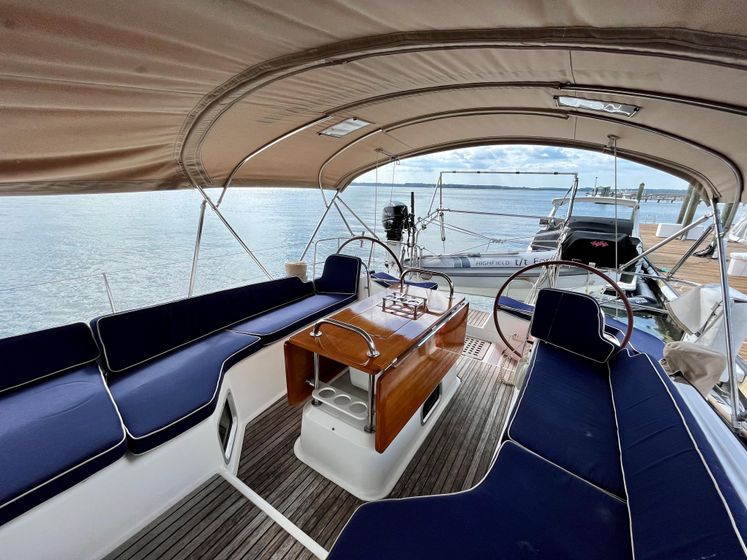

COCKPIT AND TRANSOM
1) LOUNGING AREA protected by coachroof and
optional sprayhood
2) DINING AREA with seating for 6 people around
large cockpit table
3) STEERING AREA with twin helm consoles, primary
winches and engine controls

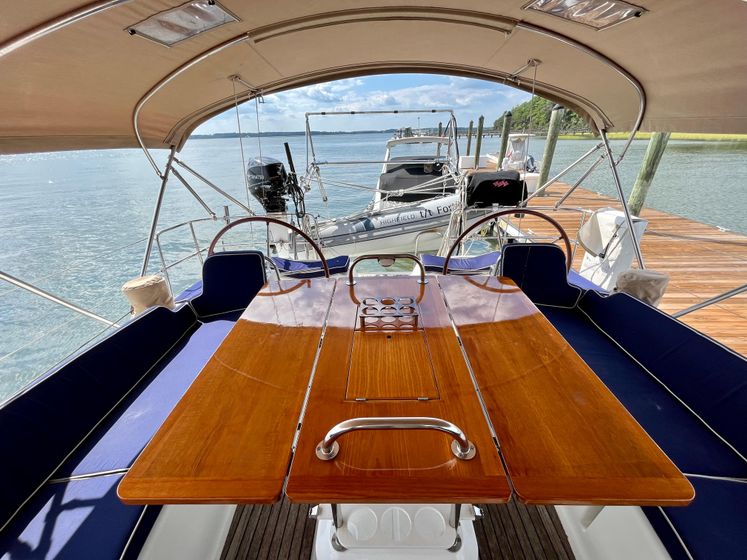

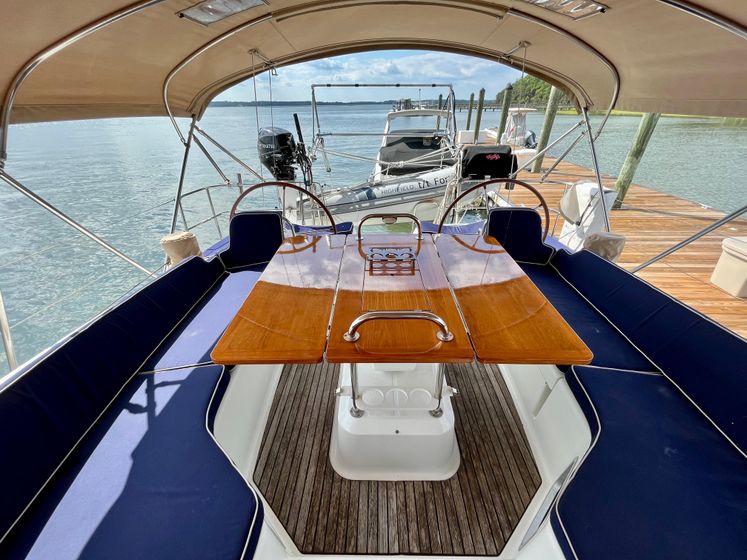

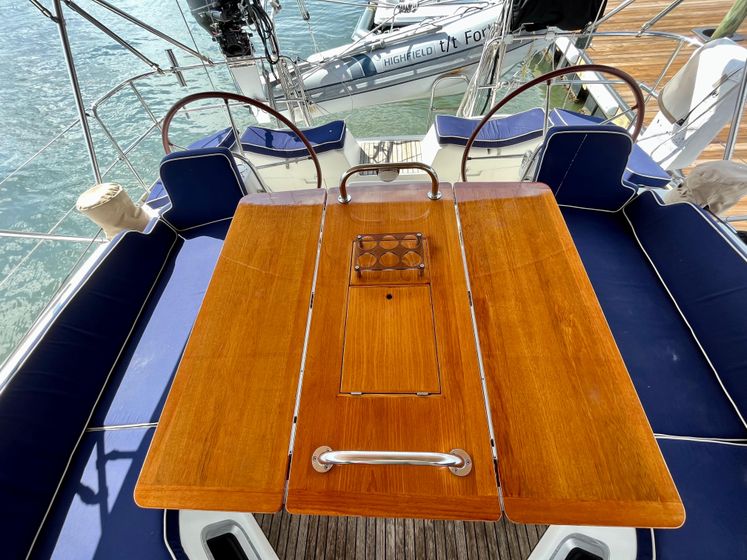

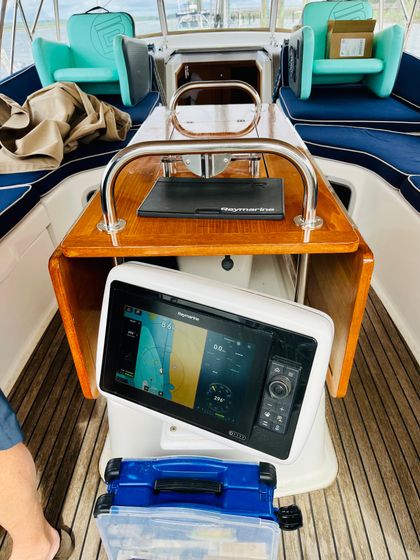

LARGE COCKPIT TABLE in GRP with 2 drop-down
leaves and the following:
• Indirect lighting
• Storage compartment
• Cupholders
• Bottle holders
• 12V accessory plug
• Space for optional GPS chartplotter

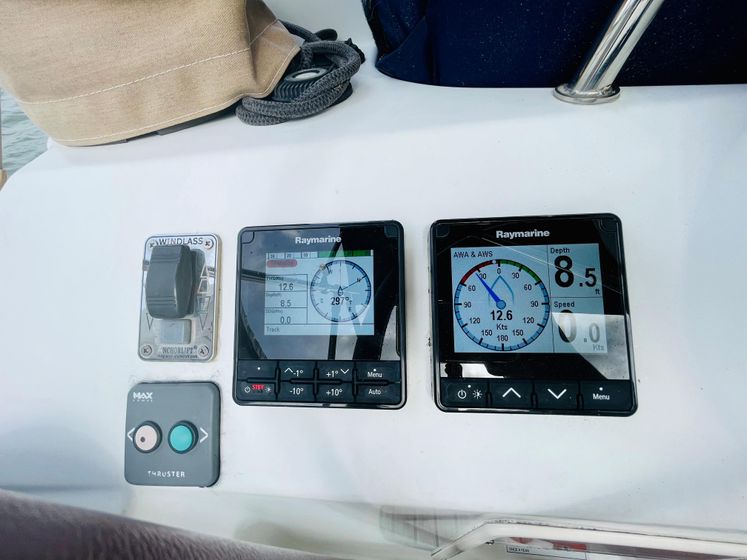

2 STEERING STATIONS each with:
• Stainless steel steering wheel 90 cm / 35” with a
leather wrap
• Steering compass
• Stainless steel handrail

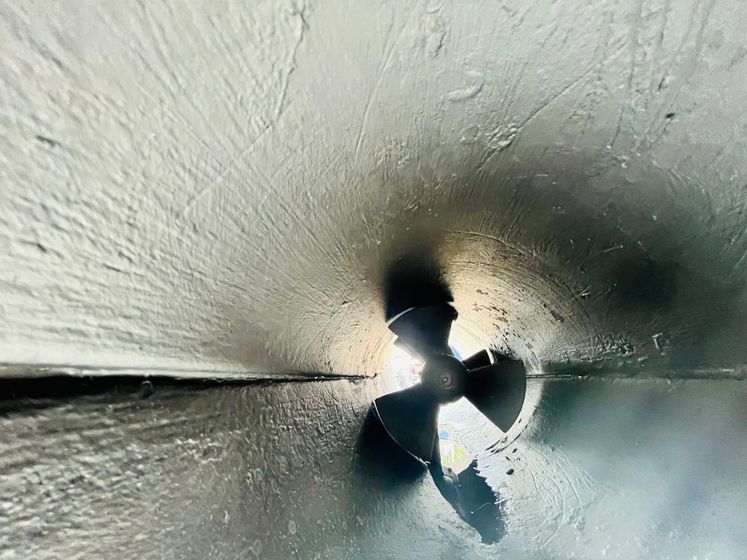

• Space for optional bow thruster control, autopilot
control and instrumentation
• Cup holder
GAS LOCKER for 2 gas bottles 27 cm / 10 5/8” in
diameter and 45 cm / 17 11/16” high
OPENING TRANSOM STAIRS hinge up for access
to liferaft, lockable
DEDICATED LIFERAFT COMPARTMENT in
stern makes it possible to launch the liferaft without
leaving the cockpit
LARGE COCKPIT LOCKER under portside bench
seat with pneumatically-assisted opening
2 DEEP LAZERETTE LOCKERS under helm seats
with access to technical areas and steering system
2 BACKSTAY CHAINPLATES in stainless steel on
both sides of the stern
INLETS FOR SHORE POWER CABLES
SWIM LADDER with teak steps
AERATORS for engine room ventilation
DECK EQUIPMENT
TRADITIONAL TEAK DECKS
Exterior wood used in cockpit and side decks is teak with
black caulking.
STEMHEAD FITTING in stainless steel with double
anchor rollers and attachment point for asymmetrical
spinnaker
ANCHOR WINDLASS 1500W/12v with a chainwheel
for 12mm / ó” chain and a line drum mounted on deck
PROTECTIVE TRIM to keep chain from chaffing
on the deck
ANCHOR LOCKER with access from the deck and
location for manual handle and bitter end attachment
point
OPEN BOW PULPIT in stainless steel, 750 mm / 30’’ high
DOUBLE LIFELINES in stainless steel wire, 750 mm / 30’’ high
LIFELINE GATES located just aft of midships to either
side
TEAK DECK-EDGE PROFILE runs from stem to
stern to finish hull-to-deck joint and provides a foot hold
for safety.
MOORING CLEATS in aluminium:
• 2 at the bow
• 2 midships
• 2 at the stern
MAST STEP (deck-stepped mast) in anodised
aluminium with Harken blocks
OPEN FAIRLEADS in aluminium:
• 2 at the bow
• 2 forward quarter
• 2 midships
• 2 at the stern
MAIN CHAINPLATES in stainless steel

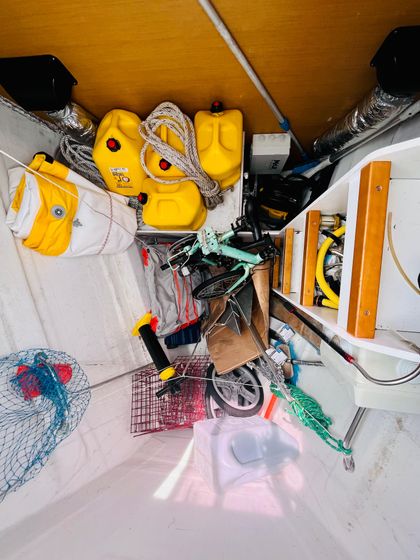

LARGE DECK HATCH (70cm x 70cm / 27” x 27”)
providing access to forward sail locker or optional
skipper cabin. Hatch can be locked and has non-skid tape
applied to surface.

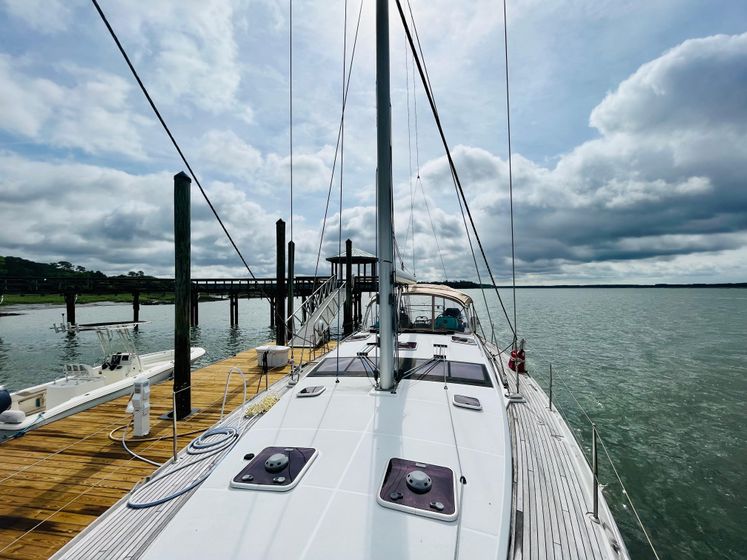

OPENING LOW-PROFILE DECK HATCHES in
foredeck
• 2 opening deck hatches (51cm x 51cm / 20” x 20”)
over forward cabin with integrated ventilators
• 2 opening deck hatches (33cm x 33cm / 13” x 13”)
over forward washroom/cabin
FORWARD COACHROOF WINDOWS drapeformed
in 15 mm / 19/32” acrylic and bonded to deck
LATERAL COACHROOF WINDOWS drapeformed
in 10mm / 3/8” acrylic and bonded to deck.
2 OPENING PORTS integrated behind fixed windows.
OPENING LOW-PROFILE DECK HATCHES on
coachroof
• 3 forward opening deck hatches (51cm x 51cm /
20” x 20”) with integrated ventilators

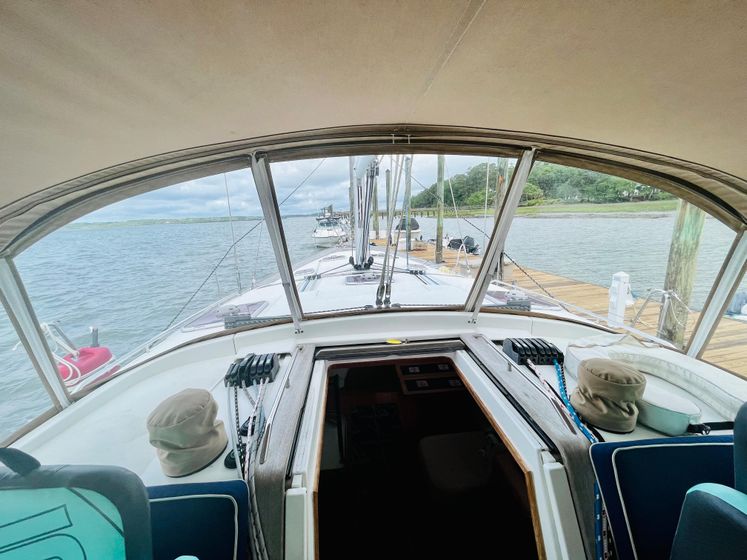

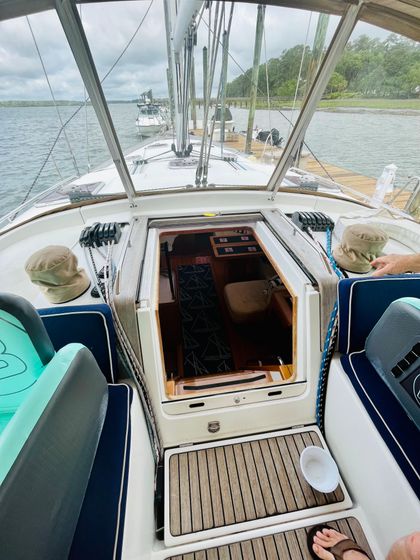

DROP-DOWN COMPANIONWAY HATCH
• Vertical hatch slides down when opened, no hatch
boards to store
• Can be set in closed, open and half-open positions
• Line storage locker just aft of the companionway
hatch
SPINLOCK DECK ORGANISERS on each side
LONG HARKEN TRAVELLER WITH BALLBEARING
CAR and control lines led aft to cockpit
SPINLOCK LINE STOPPERS
FOLDING PADEYES on deck for spinnaker deck gear
HARKEN GENOA TRACKS with genoa sheet cars
adjustable from the cockpit
2 HARKEN TURNING BLOCKS for genoa sheets
2 HARKEN 46.2 SELF-TAILING ROOFMOUNTED
WINCHES for halyards
2 HARKEN 70.2 SELF-TAILING HELMMOUNDED
WINCHES for genoa sheets
STEP integrated into coaming to facility access to side
decks

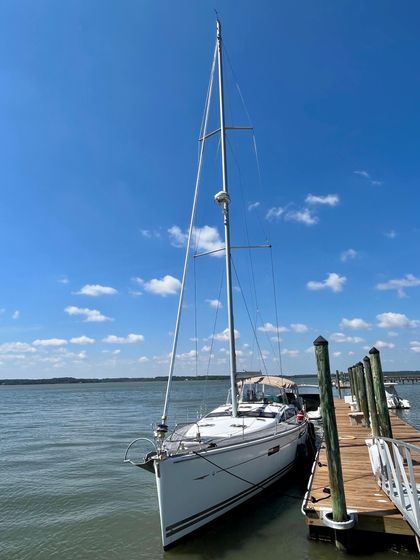

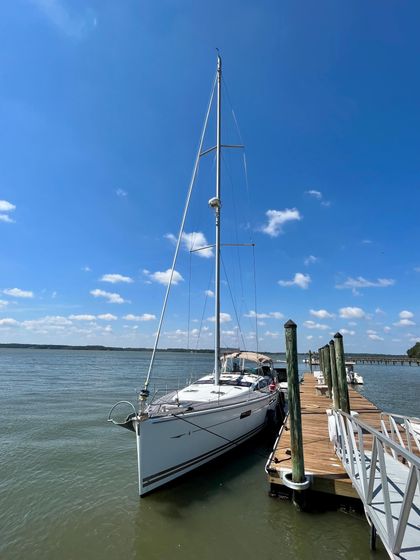

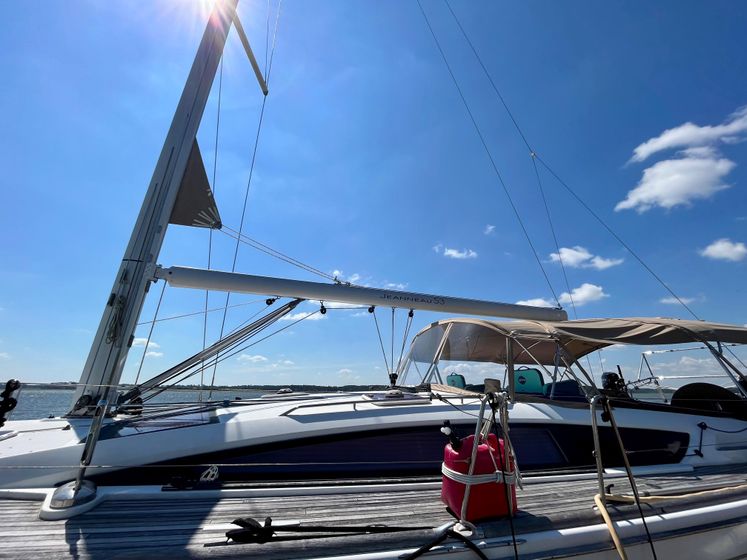

MAST & RIGGING
DECK-STEPPED, ANODISED ALUMINIUM
IN-MAST FURLING MAST, FRACTIONAL RIG
built by Z-Spar/U.S. Spars
DOUBLE SPREADER DESIGN
MASTHEAD with 2 aft sheaves for main halyard and
boom topping lift and 1 spinnaker sheave forward
360° ANCHOR LIGHT
1 FORWARD SHEAVE for genoa halyard
1 FORWARD SHEAVE for spinnaker topping lift
COMBINATION STEAMING AND DECK LIGHT
FLAG HALYARD padeyes under first set of spreaders
ANODISED ALUMINIUM BOOM for in-mast
furling with outhaul sheave and roller-bearing car on track
RIGID VANG with control lines lead aft to the cockpit
STANDING RIGGING is discontinuous wire rigging
RUNNING RIGGING
• Halyards in ultra low-stretch Dyneema
• Additional lines and sheets in low-stretch
polyester
PROFURL GENOA FURLER, above-deck drum with
furling line lead aft to coaming winch
SAILS
The standard suit of sails for the Jeanneau 53 includes
a furling mainsail and a 135 furling genoa. Both sails are
high-quality Dacron sails
ENGINE
Yanmar 4JH4-HTE:
• 110 HP / 74 Kw
• 4-cylinder
• Engine Hours: 1336
• Engine alternator: 125A
• Engine panel, throttle and display located near
portside helm
SOUND INSULATION
GRP ENGINE BED AND LINER
DRIPLESS SHAFT GLAD with water lubrication
STAINLESS STEEL SHAFT 35mm with bronze strut
3-BLADE FIXED PROPELLER
EXHAUST SYSTEM
• Roto moulded exhaust mixer
• Stainless steel exhaust fitting on hull
VENTILATION SYSTEM
• Extractor fan located in engine room
• Ventilation ducting vents on transom
FUEL SYSTEM
• Roto moulded tank (240 l / 63 US Gal) located
under aft cabin berths
• Inline fuel/water separator
• Fuel gauge at electrical panel
ELECTRICAL
MAIN ELECTRIC PANEL at navigation station backlit
in a soft blue light

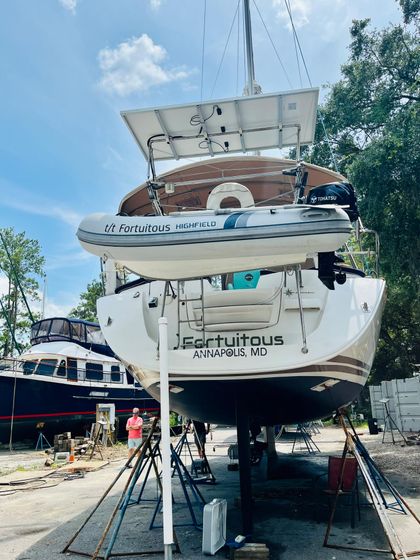

SOLAR PANELS
• Total watts: 460
7.5 KW ONAN GENSET: 922 HOURS
SWITCHES FOR MAIN HOUSE SYSTEMS,
including:
• Lighting
• Refrigeration
• Water pumps
• Bilge pumps
• Electronics
• Navigation lights
12V ACCESSORY PLUG
SELECTOR SWITCHES WITH LCD
DISPLAYS:
• DC Voltage levels of each battery bank
• Amperage consumption meter
• Fuel level selector (per tank)
• Water level selector (per tank)
110V PANELS FOR SHORE
POWER/GENERATOR SYSTEMS are located
behind a door forward of the navigation station and
include switching panels with integrated voltmeters to
select shore power or generator sources and breakers
for each individual circuit or appliance
12V FOR HOUSE AND ENGINE SYSTEMS
• House battery bank:
- 4 Lithium-Ion 12V batteries (upgraded to lithium-ion)
• Engine battery bank:
- 1 x Lithium-Ion 12V battery (upgraded to lithium-ion)
• Bowthruster battery bank: 4 dedicated 24V lead acid batteries (2020)
• Engine alternator: 125A
• Battery switches: in the aft cabin
12V PLUGS AND 110V PLUGS in each
cabin, saloon, chart table and galley
LED AND HALOGEN INTERIOR LIGHTING
COURTESY LIGHTING under interior steps
PLUMBING
FRESH WATER SYSTEM with high-pressure 12V pump
(19l/min / 5 US Gal/min), carbon cartridge filters installed and accumulator tank
SEA WATER AND FRESH WATER FOOT PUMP
in the galley
3 ROTO MOULDED WATER TANKS
• 400L / 106 US Gal tank under the forward berth
• 320L / 85 US Gal tank under the main saloon floor
• 230L / 61 US gal tank under aft cabin berth
TANK MANIFOLD with selector valves located
behind saloon seating
TANK GAUGES located at the electrical panel
40 L / 11 US GAL HOT WATER HEATER connected
to engine heat exchanger and 110V electrical
system
HOT AND COLD WATER SHOWER at the
transom
RAW WATER
SHOWER PUMPS with macerator function, activation
of shower pumps via foot switch
SINKS AND WASHBASINS drain directly overboard
WASTE WATER
ELECTRIC QUIET FLUSH HEADS WITH FRESHWATER (ONE CAN BE SWITCHED TO SEAWATER WHEN NEEDED) with large bowl
3 ROTO MOULDED HOLDING TANKS 85 L / 23 US
Gal - one per head
NON-SMELL WHITE PVC HOSING
BILGE DRAINAGE
EACH BILGE PUMP HAS SEPARATE HOSING
from sump to through-hull
• Electric bilge pump located outside of the bilge
area with activation via float switch
• Electric bilge pump located in bilge area with
activation via switch at electrical panel
• Dual-action manual bilge pump located in the cockpit
OPTIONAL EQUIPMENT OUTFITTED ON FORTUITOUS
The following are the additional options that were outfitted on this Jeanneau 53 Yacht at the time of her commissioning:
COOLING PLATE installed in 100L / 27 US Gal
icebox in galley with 12V compressor, “keel-cooler” heat
exchanger for maximum efficiency
UPGRADED MAGNUM INVERTER/CHARGER for 12V lithium-ion battery banks

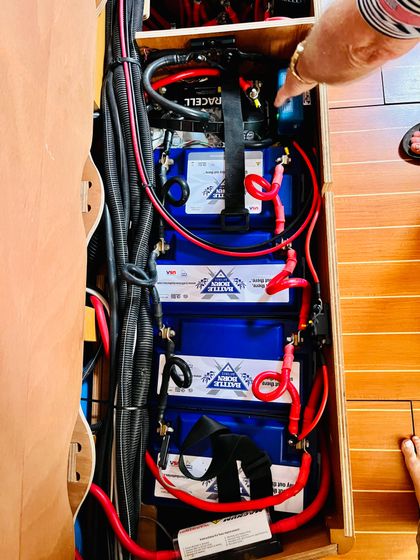

UPGRADED LITHIUM-ION 12V HOUSE BATTERIES consists
of 4 lithium battle born 12V batteries
ENTERTAINMENT CENTRE for main saloon
• PIONEER DVD/CD/MP3 player with AUX input
• 2 Bose® surround sound speakers in the saloon
• 1 Bose® base unit
• 2 waterproof exterior speakers located in the
cockpit
UPGRADED 3 BURNER COOKER AND OVEN with grill function
(replaces standard 2 burner cooker) + Microwave
UPGRADED LED NAV LIGHTS

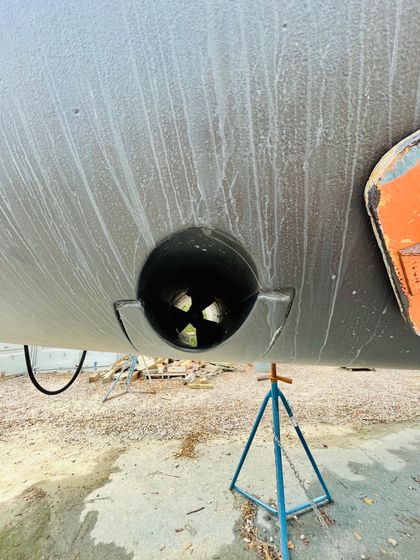

BOW THRUSTER 24V with separate 24V
battery bank consisting of 4 lead acid 24V batteries (2020)
TEAK COCKPIT FLOOR
1 HARKEN 46.2 ELECTRIC WINCH on the
coachroof for halyards and control lines, 12V
SECOND ELECTRIC WINDLASS CONTROL mounted on the
port helm console with chain counter
2000 W MAGNUM CHARGER / INVERTER provides 110V power to
onboard appliances and outlets
MICROWAVE installed in galley
FOLDING TEAK COCKPIT TABLE replaces
GRP cockpit table with all the same functions, includes
protective cover in Sunbrella® Beige Tweed
SPINNAKER RIGGING:
RUNNING RIGGING FOR ASYMMETRICAL
SPINNAKER includes:
• 2 sheets
• 1 halyard
• 1 downhaul
• Turning blocks for mast base and sidedecks
• Reinforcement for attachment point on stemhead
fitting
EXTERIOR CANVAS:
TAN SPRAYHOOD in Sunbrella®
TAN PROTECTIVE COVERS for main saloon
windows along with Sunbrella® covers for the helm
stations and winches
LARGE 4 BOW COCKPIT BIMINI with viewing
ports above each helm and integrated LED lighting
COCKPIT CUSHIONS
BRACKET FOR OUTBOARD MOTOR
ANCHORING KIT 25kg / 55lbs DELTA anchor with
40 m / 131 ft of 12mm chain and 50m / 164’ of line
ELECTRIC SEAWATER / FRESHWATER
WASHDOWN PUMP 12V in anchor locker with
hose and nozzle
GENERATOR ONAN 7.5 KW 220V 2400RPM (110V
version generates 7.5 Kw at 2900RPM)
CRUISAIR® AIR CONDITIONING 38,000 BTU
runs via shorepower or generator.
• Main saloon – 16000 BTU
• Forward cabin(s) – 10000 BTU
• Aft cabin (s) – 12000 BTU
Each unit has individual thermostat
FANS IN EACH CABIN and in the saloon
INTERIOR: SALOON
2 FOLDING ARMCHAIRS Dedon Seax in the saloon
FOLDING DELUXE TABLE in main saloon with storage underneath
DELUXE INNER SPRING MATTRESS designed
and constructed for the marine environment for owner’s
cabin berth (forward or aft)
WASHER AND DRYER unit 220V located bottom
of hanging locker, capacity 5kg. Not available in 4 and 5 cabin
versions
QUIET FLUSH® ELECTRIC HEADS replaces
standard head, available for each head compartment
WASTE HOLDING TANKS 85 l / 22 US Gal each,
available for each head compartment
AUDIO/VISUAL:
43” LED TV mounted on the main bulkhead forward
of the lounge seat, pivots to be visible from settee and
latches when underway - Samsung 43" QLED model Q60
LED TV IN CABINS (23” in aft owner’s cabin)
STEREO SPEAKERS connected to DVD/CD/MP3
player
ELECTRONIC PACKAGE
At port helm:
• 1 x Raymarine A75 Touch Screen GPS with
integrated wifi
At starboard helm:
• 1 x Raymarine i70 multifunction display
• Smart Transducer mounted in hull provides depth,
speed and water temperature to system
• Wind transducer for masthead
RAYMARINE AUTOPILOT SPX-30 autopilot Upgraded to Raymarine ACU400 and EV1 pilot controller in 2022.
RAYMARINE A75 12” CHART PLOTTER display
located at starboard helm
RAYMARINE e125 12” CHART PLOTTER display
at chart table and connected to exterior GPS (if fitted)
4Kw RAYMARINE HD DIGITAL RADOME and
mast mount
RAYMARINE 55E VHF AND AIS RECEIVER Raymarine AIS 650 Class B upgraded in 2020
TENDER AND OUTBOARD MOTOR

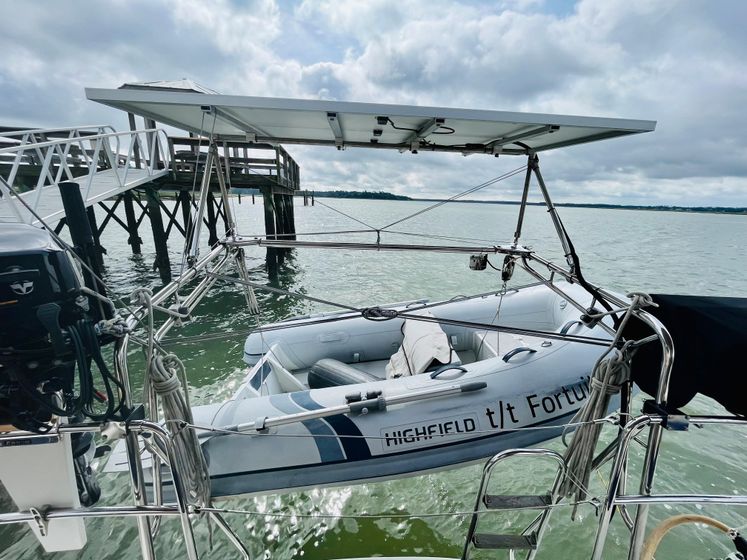

2019 HIGHFIELD 290 HYP RIGID INFLATABLE BOTTOM DINGHY
2020 15-HP TOHATSU FUEL INJECTION GAS OUTBOARD MOTOR
DISCLAIMER
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
